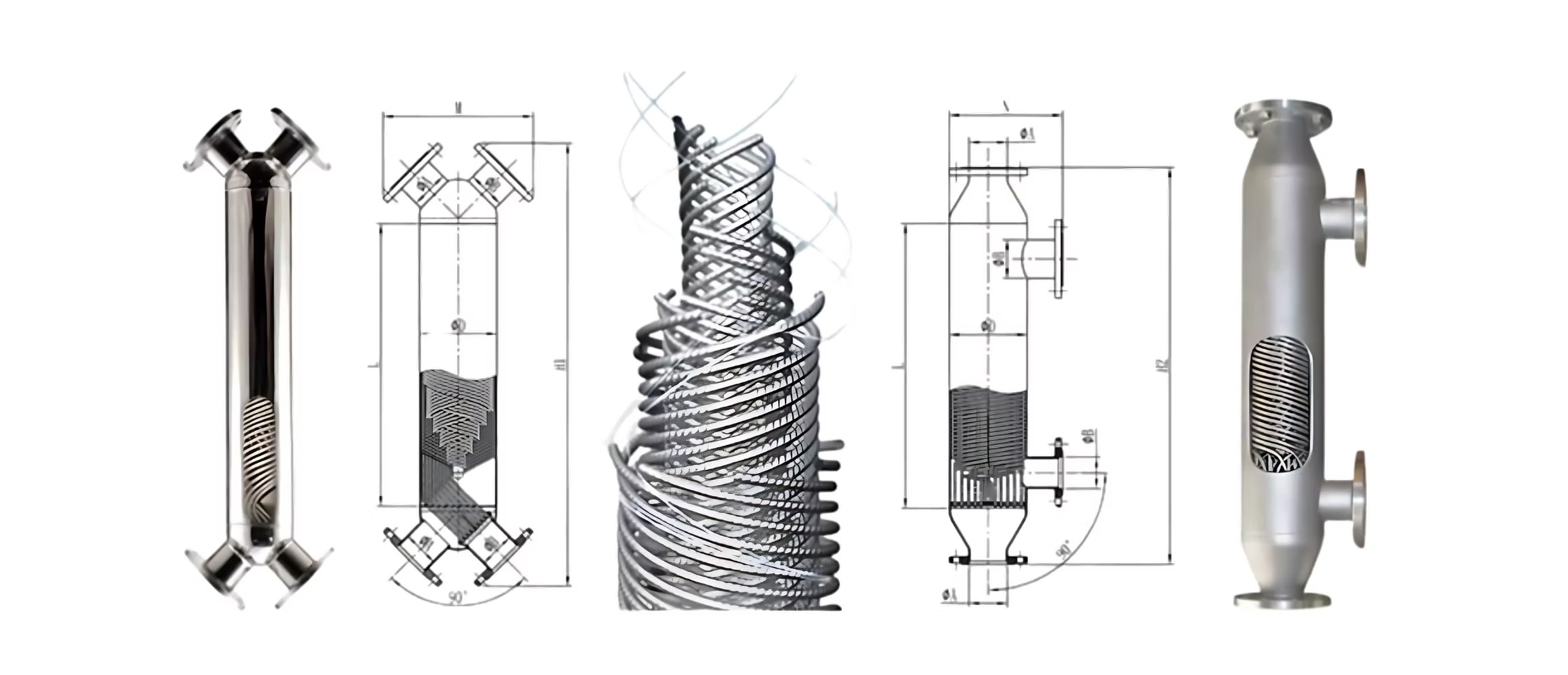

MODEL

AREA M2

TUBE mm

A

B

D

M

N

L

H1

H2

CWHE-X (K) 76/100-10/10-0. 7

0.7

@10×1

45

45

76000

240

156

1000

1270

1220

CWHE-X (K) 108/100-10/15-1. 4

1.4

@10×1

57

57

108000

270

188

1000

1300

1245

CWHE-X (K) 133/100-10/28-2. 2

2.2

@10×1

76

76

133000

330

213

1000

1360

1300

CWHE-X (K) 159/100-10/44-4. 2

4.2

@10×1

89

89

159000

360

239

1000

1390

1325

CWHE-X (K) 219/100-10/79-7. 7

7.7

$10×1

108

108

219000

415

319

1000

1445

1370

CWHE-X (K) 273/100-10/111-12

12

@10×1

133

133

273000

505

373

1000

1535

1450

CWHE-X (K) 325/100-10/160-16

16

@10×1

159

159

325000

565

425

1000

1595

1500

CWHE-X (K) 377/100-10/256-21

21

@10×1

219

219

377000

625

477

1000

1725

1590

CWHE-X (K) 76/100-10/10-1. 1

1.1

@10×1

45

45

76000

240

156

1500

1770

1720

CWHE-X (K) 108/100-10/15-2. 2

2.2

@10×1

57

57

108000

270

188

1500

1800

1745

CWHE-X (K) 133/100-10/28-3. 5

3.5

@10×1

76

76

133000

330

213

1500

1860

1800

CWHE-X (K) 159/100-10/44-6. 2

6.2

@10×1

89

89

159000

360

239

1500

1890

1825

CWHE-X(K) 219/100-10/79-12

12

@10×1

108

108

219000

415

319

1500

1945

1870

CWHE-X (K) 273/100-10/111-20

20

@10×1

133

133

273000

505

373

1500

2035

1950

CWHE-X (K) 325/100-10/160-25

24.5

@10×1

159

159

325000

565

425

1500

2095

2000

CWHE-X (K) 377/100-10/256-32

32

@10×1

219

219

377000

625

477

1500

2225

2090
